The Ultimate High–Performance Anti–Vibration Locking Washer!

HEICO-LOCK - WEDGE LOCK WASHERS

Even under extremes of vibration or dynamic loads, the HEICO-LOCK Wedge Locking System provides maximum reliability.


When the bolt is tightened, the external radial teeth of the HEICO-LOCK Wedge Lock System embed themselves in an interlocking fashion with the respective mating surface.



If the securing system is subject to dynamic stress, movement is only possible between the internal washer surface. This results in an increase in the clamping force.​

  • Certified system for securing bolts, working at low and high preload levels.

  • Particularly suitable for dynamic loads - including when using lubricants.

  • Can be re-used.

  • Very easy to install and remove (wedge lock washers are supplied as a pre-assembled pair).

  • Also suitable for high-tensile bolts of 8.8, 10.9 and 12.9 and their respective nuts.

  • Available in steel or stainless steel with narrow or wide bearing surfaces - other materials are available upon request.

  • Available from M3 - M76 and 1/4" - 3" - custom sizes upon request.

HEICO-LOCK - RING LOCK WASHERS

Provide high-quality, user friendly bolt securing for the most demanding of applications and are ideal for repeated use.

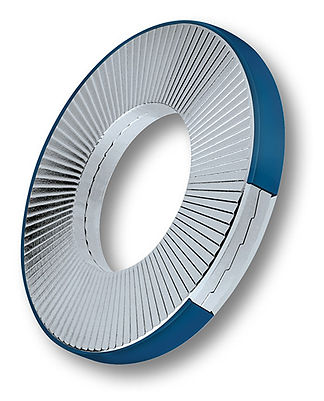

Ring Lock Washers.jpeg

The ring locking system guarantees that the two wedge lock washers are always fastened in the correct position with the wedge shaped cams on the inside and the radial teeth on the outside. This means that the bolt lock system is always easy, safe and quick to install, even for non-specialist users.

DESIGN OF THE RING LOCKING SYSTEMS

HEICO-LOCK Ring Lock Washers are supplied pre-assembled. The ring locking system consists of a polyamide ring (PA) and the already familiar HEICO-LOCK Wedge Lock Washers.

  • Very easy to install and remove (ring locking system is supplied pre-assembled)

  • Whereas the HEICO-LOCK Wedge Lock Washers secure the bolted connections reliably, the ring holds the two individual washers together in the correct position permanently.

  • Particularly suitable for dynamic loads - including when lubricants are used

  • Also suitable for use with high-tensile bolts of 8.8, 10.9 and 12.9 and their respective nuts

  • Available from M4 - M24 - custom sizes upon request

HEICO-LOCK - WEDGE LOCK NUTS

The HEICO-LOCK Wedge Lock Nut is a re-usable one piece design that delivers high quality, user friendly bolt security without the need for separate fasteners.

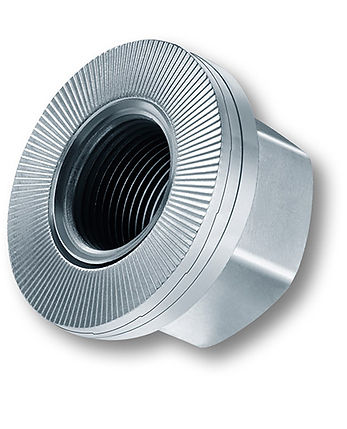

Wedge Lock Nuts.jpeg

The captive and rotary combination of the nut and the original HEICO-LOCK Wedge Lock Washers makes securing your bolted joints more efficient, effective and easier even under the most extreme vibrations and dynamic loads.

  • The one piece design eliminates the risk of misuse

  • Minimized risk of operating and production breakdowns caused by faulty bolted connections

  • Easy handling especially in hard to reach locations

  • Fixed permanently in the correct position

  • Reduction of assembly time and effort

  • Reduced complexity of the component due to less individual parts

  • Easy, safe and fast installation even for non-specialist users

  • Can be re-used

  • Available from M6 - M27 in strength class 10

  • Also available with fine thread: M20 x 1.5 and M22 x 1.5

HEICO-LOCK - WHEEL NUTS

The HEICO-LOCK Wheel Nut is the reliable solution for the problem of self-loosening of wheel nuts on both roads and rough terrain.

Wedge Lock Nuts.jpeg

The captive and rotary combination of the nut and the original HEICO-LOCK Wedge Lock Washers provides ideal protection for securing your wheels even under the most adverse circumstances, high speeds and demanding road conditions.

With the HEICO-LOCK Wheel Nut accidents caused by wheel loss are a thing of the past!

Design of the Wheel Nut

The HEICO-LOCK Wheel Nut is supplied pre-assembled. The nut and the HEICO-LOCK Wedge Lock Washers are combined in a captive and rotary way, ensuring the HEICO-LOCK Wedge Lock Washer and the nut are fixed permanently in the correct position with the wedge lock washers securing your bolted joint using the proven HEICO-LOCK principle without loss of quality or function.

  • Significantly reduced risk of accidents caused by loosening of wheel nuts

  • Easy due to pre-assembled combination

  • Minimized risk of operating and production breakdowns caused by faulty bolted connections.

  • Reduction of assembly time and effort

  • Easy, safe and fast installation even for non-specialist users

  • Reusable up to multiple times

  • Suitable for all common steel disc wheels

  • Also available with fine thread: M20 x 1.5 and M22 x 1.5 and 7/8"-11 BSF, other sizes upon request.

TUV CERTIFIED QUALITY

HEICO-LOCK Wheel Nuts, supplied in fine thread M20x1.5 and M22x1.5 variants, have achieved the TUV SUD seal of approval. As a globally recognized independent testing center, TUV SUD are trusted experts regarding safety and quality.

FUNCTIONAL PRINCIPLE

An important feature of HEICO-LOCK wedge lock washers, setting them apart from other systems that are available, is the securing of the bolt fastening using preload force rather than friction.

  • Wedge-shaped surface on the inside of the lock washers, radial teeth on the outside

  • Interlocking embedding of the radial teeth with the respective mating surface (when the bolt is tightened

  • System movement only possible between the inside washer suraces, allowing the securing system to readjust itself automatically

  • Increase in clamping force

Wedge Lock Nuts.jpeg
Ring Lock Washers.jpeg
Heico Combi-Washers.jpeg
Heico-Combi Washer example.jpeg
